EQUIPMENT REPAIR PROJECTS
Appliance & Equipment Repair
A dryer, Traeger grill, and treadmill each needed a different fix. These galleries show the diagnosis, hands-on repair, and finished result for equipment that stopped working as it should.
Traeger Grill Repair

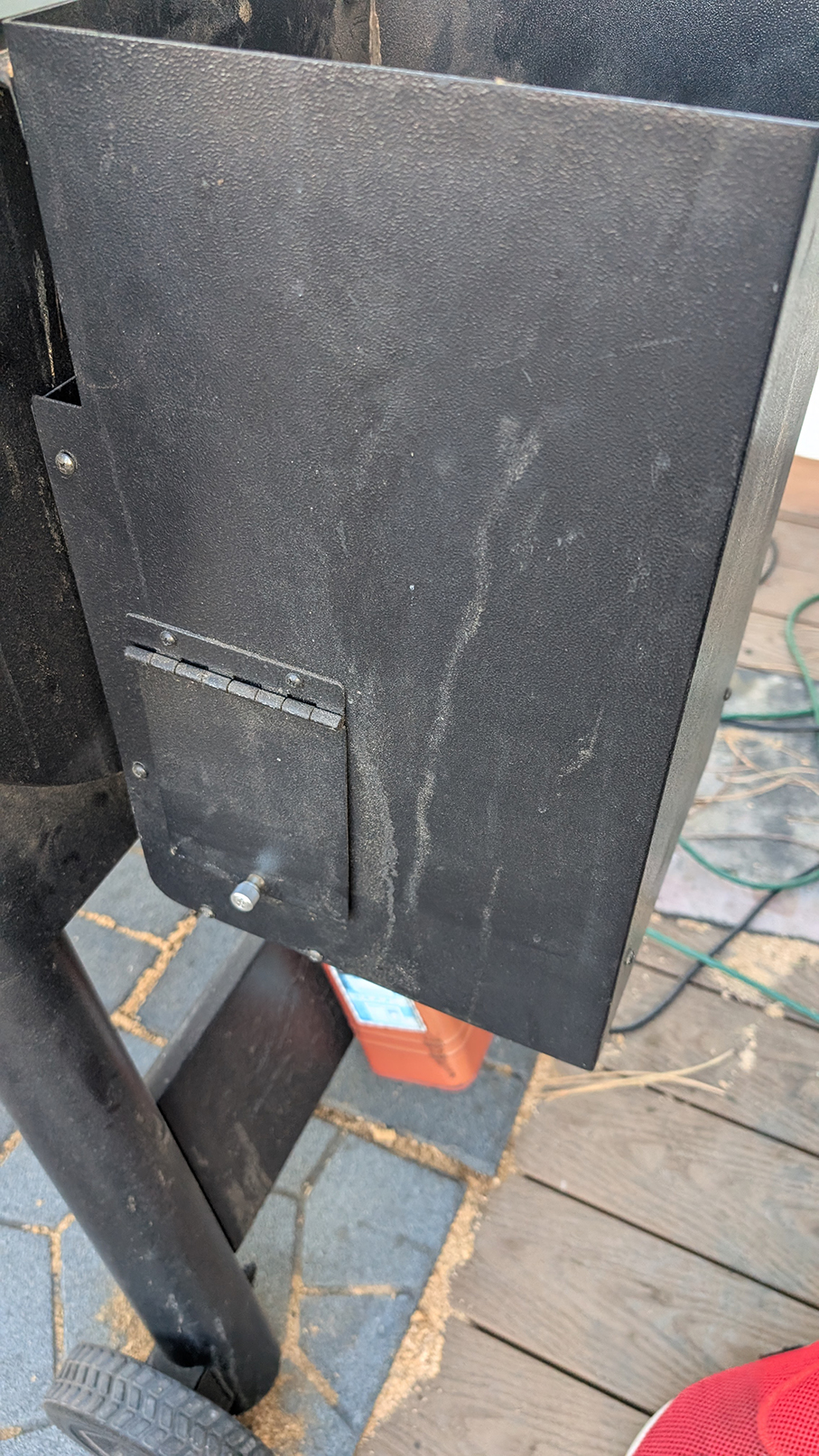

Inside the Traeger grill before the repair.

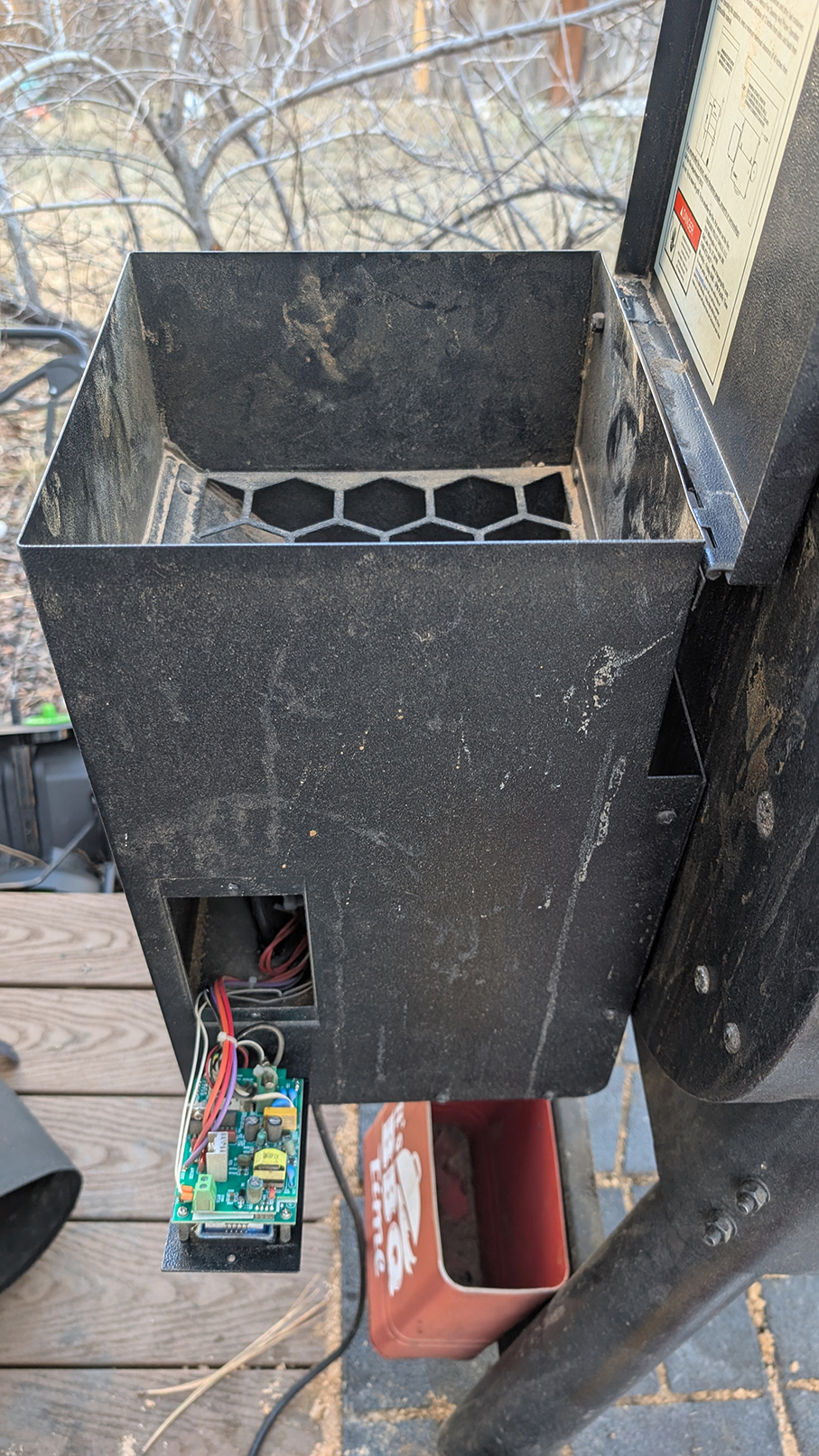

Open grill housing during the repair.

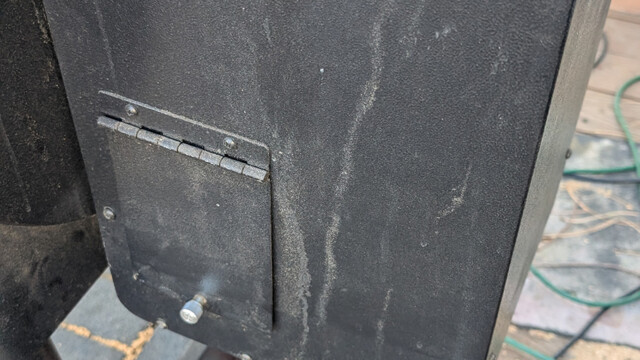

Access panel removed to reach internal grill components.

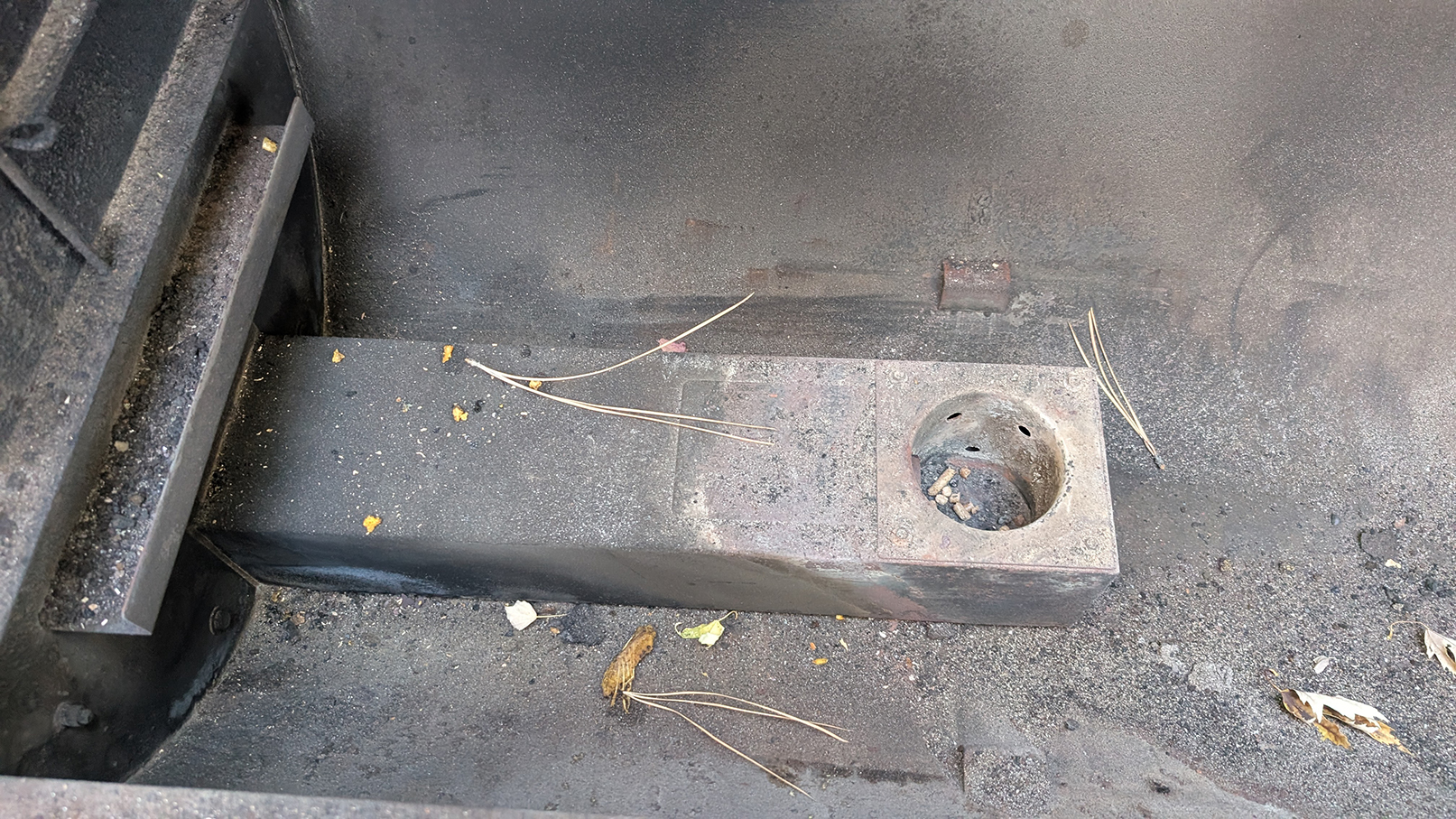

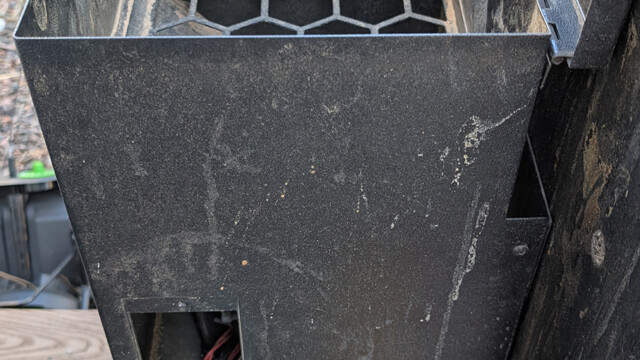

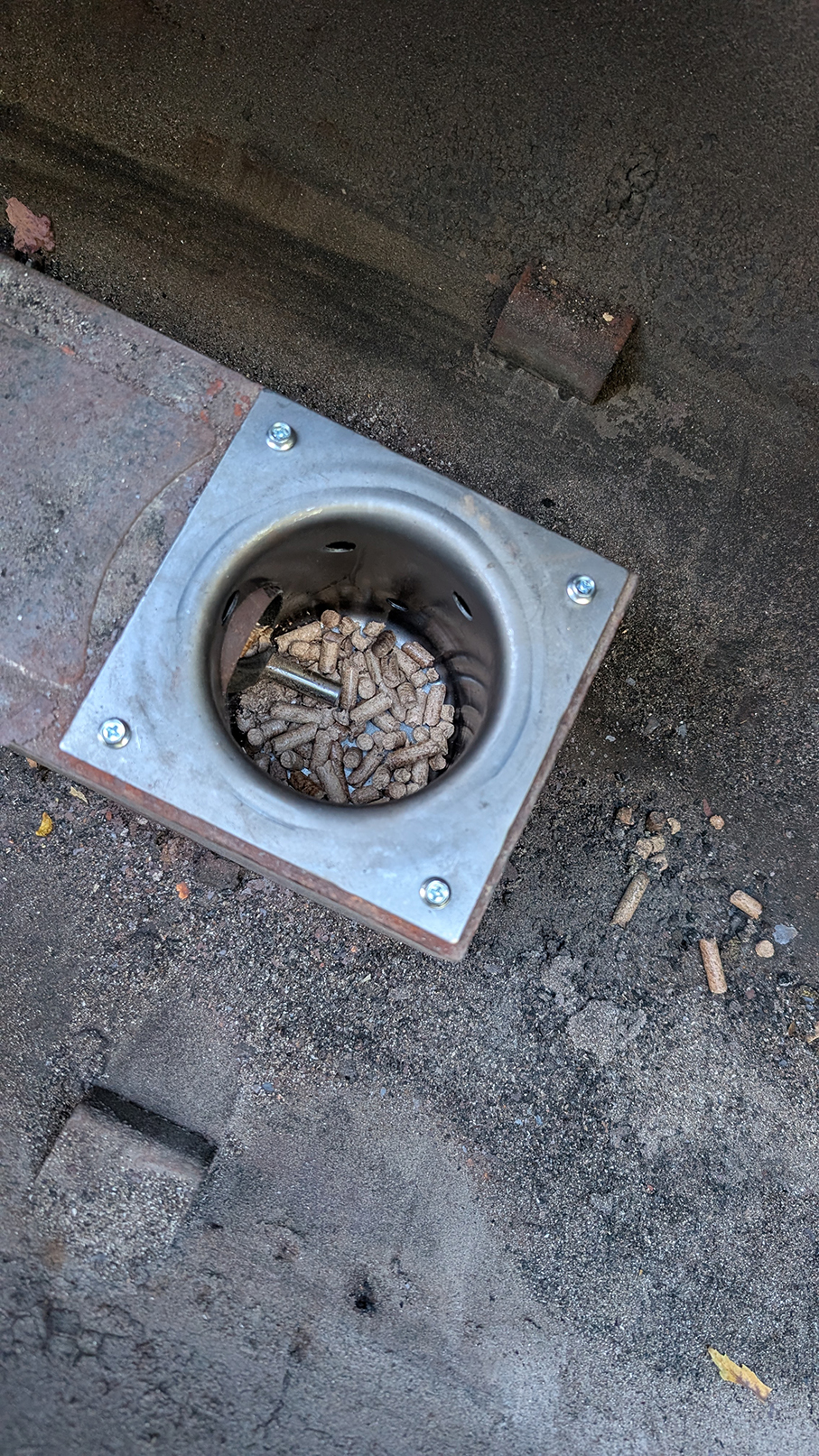

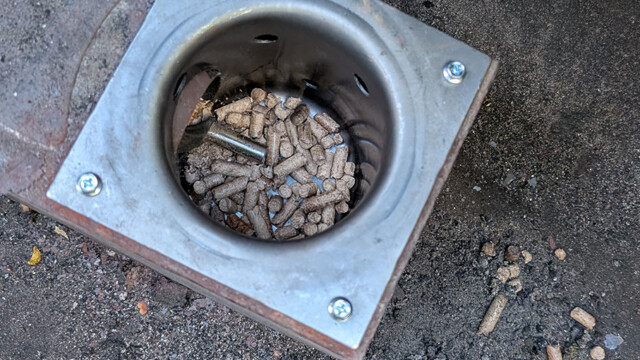

Internal grill component exposed during troubleshooting.

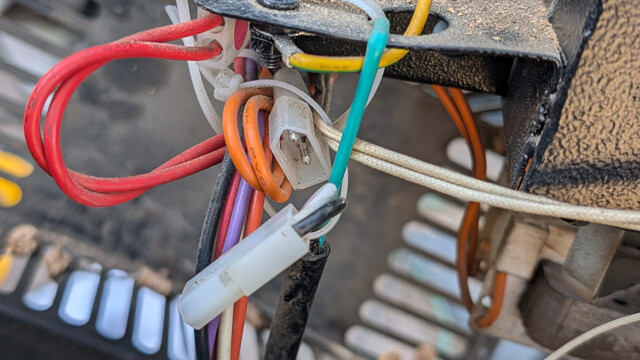

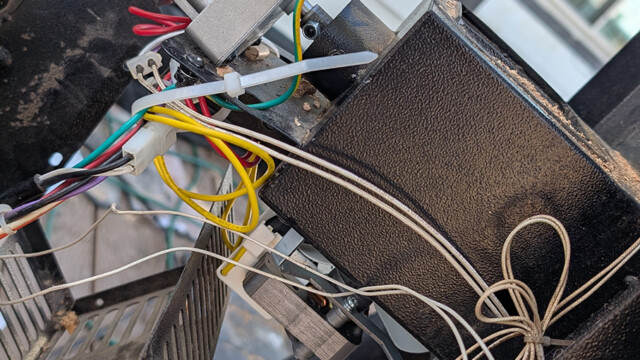

Wiring connections inside the Traeger grill.

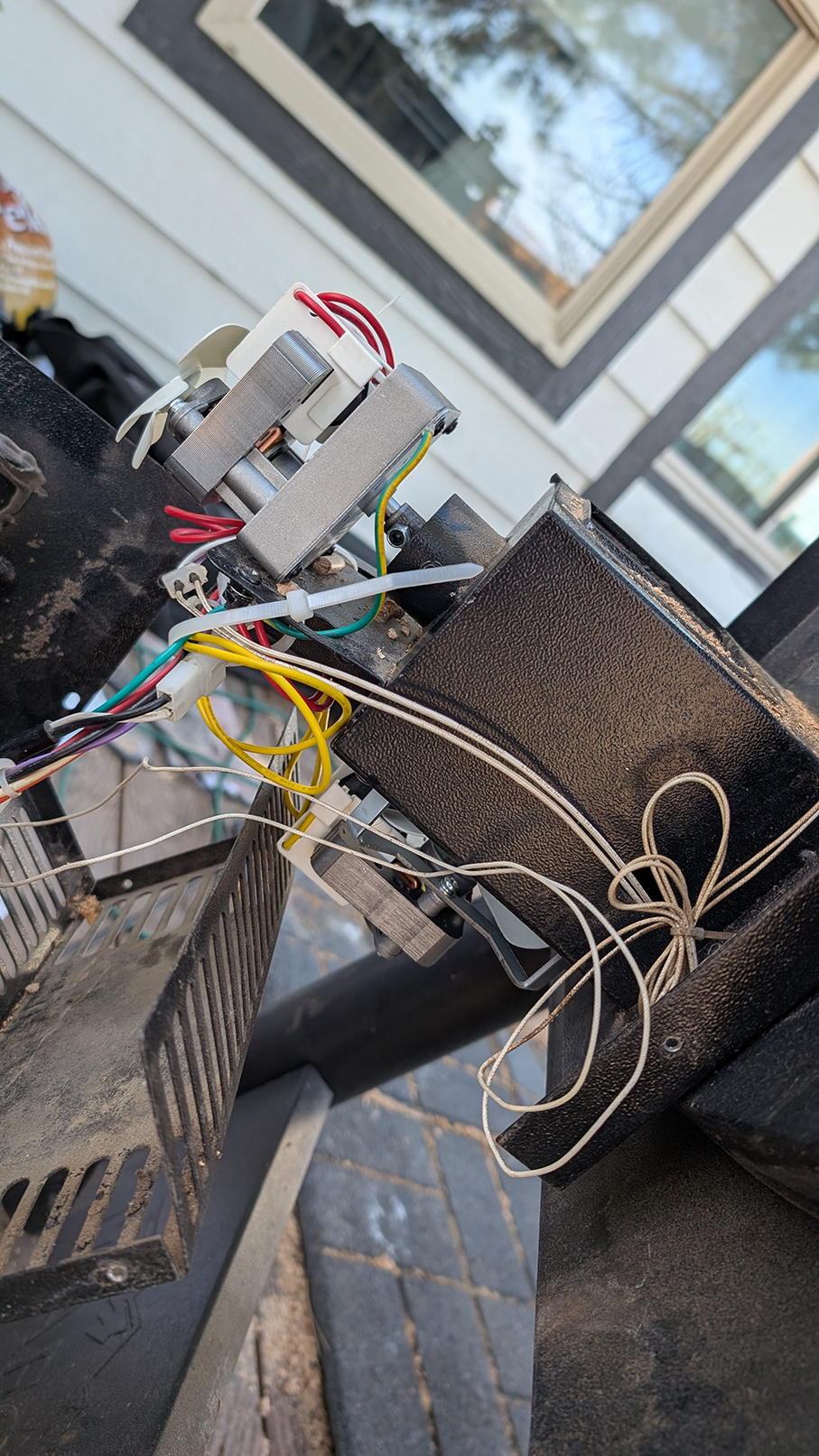

Controls and wiring exposed during the grill repair.

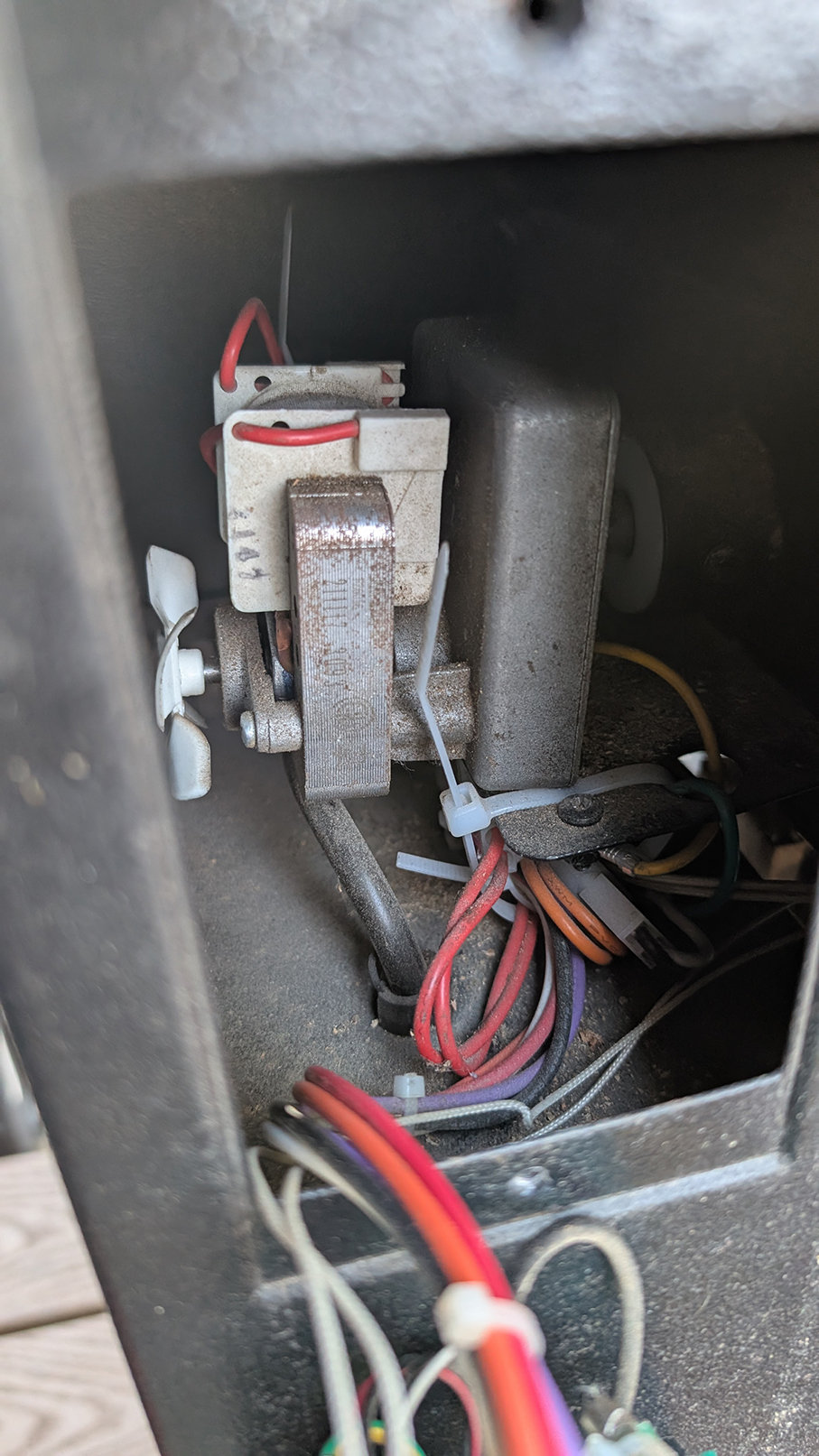

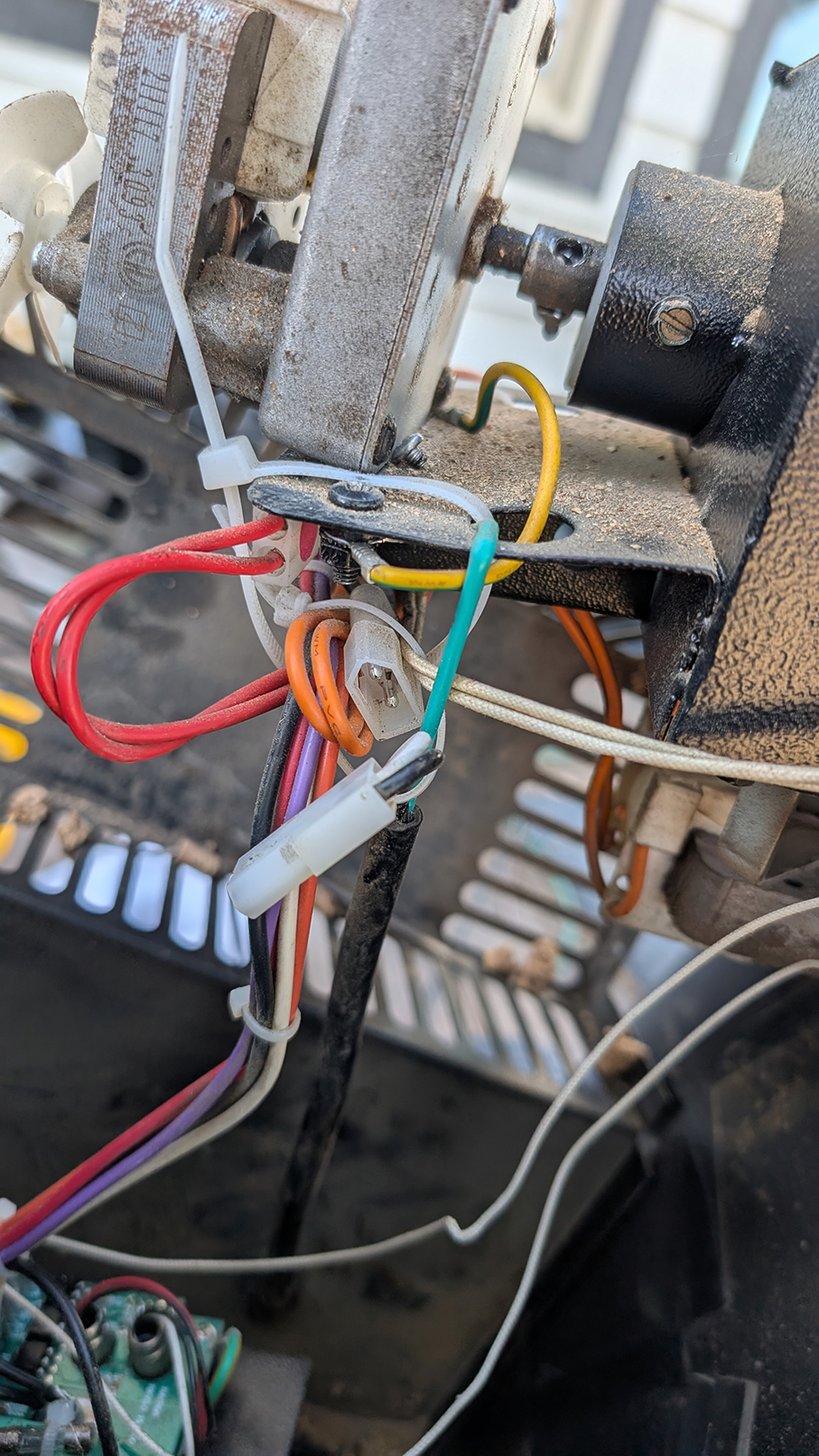

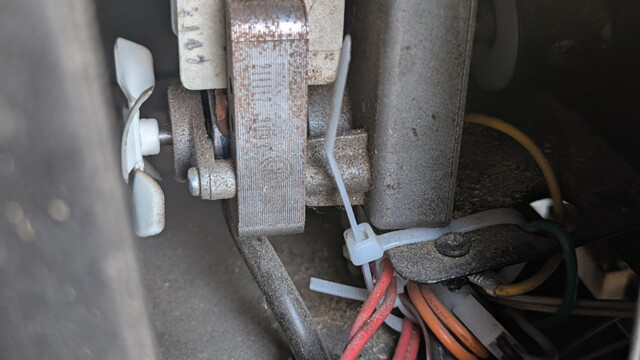

Fan area inside the Traeger grill.

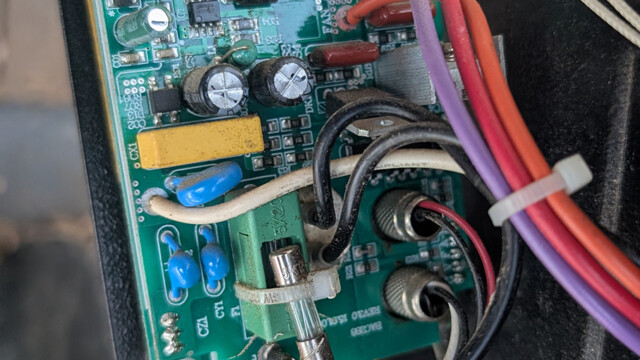

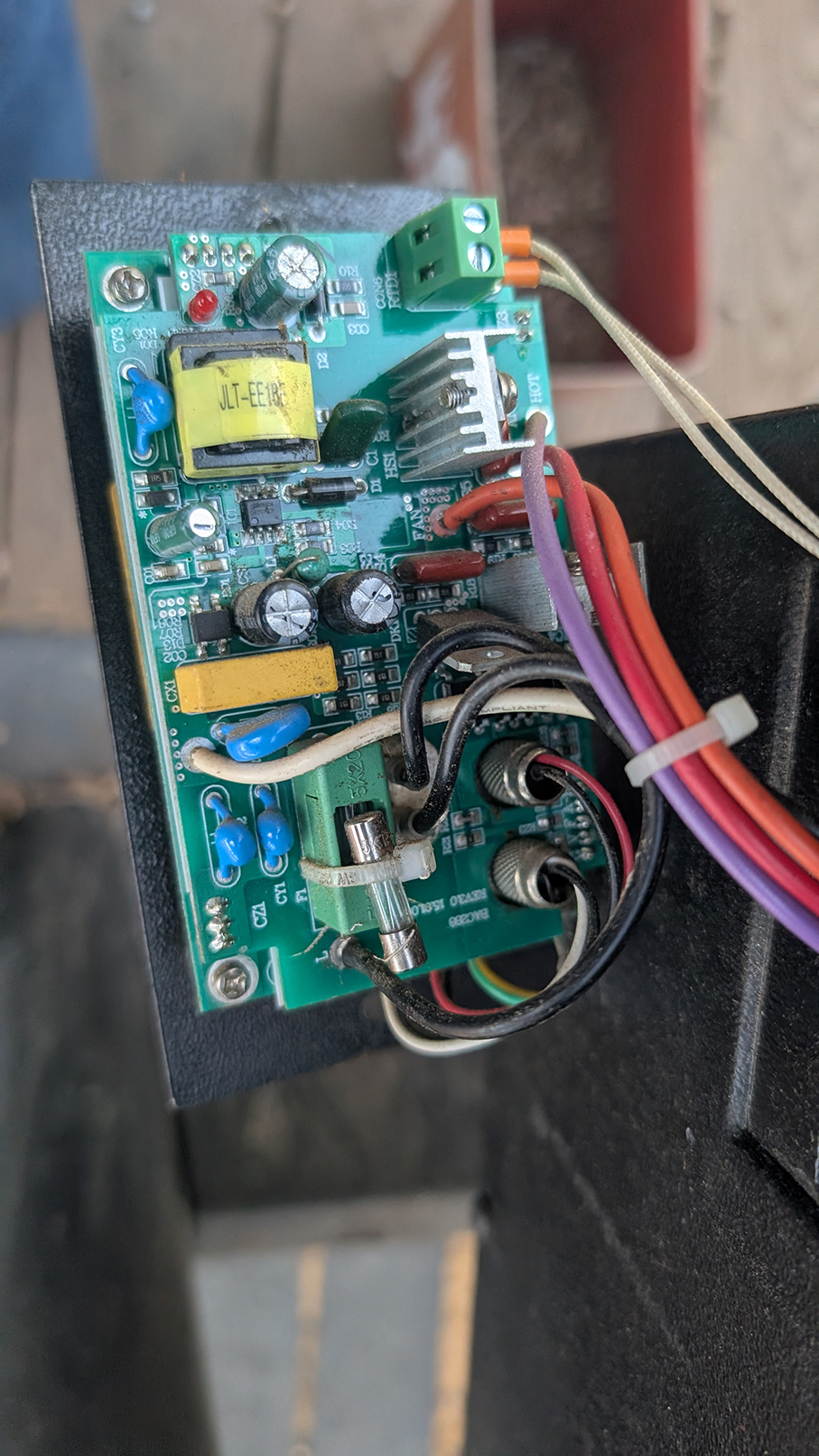

Circuit board and wiring in the Traeger grill.
Dryer Repair

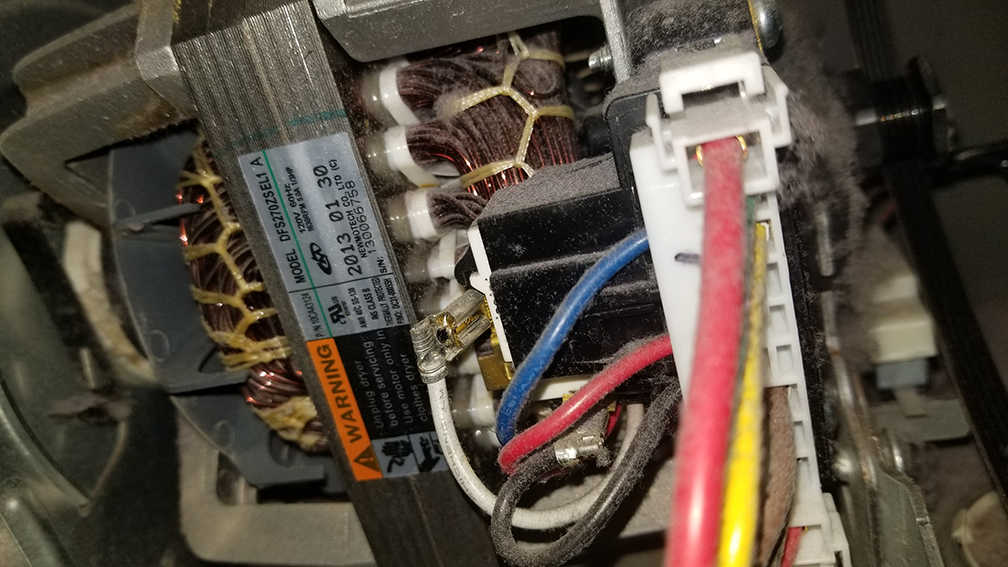

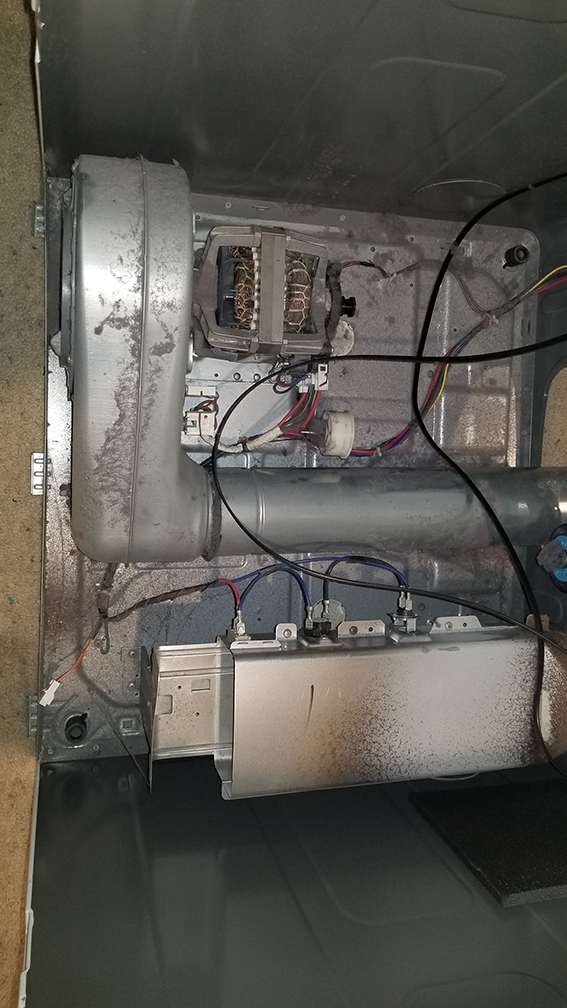

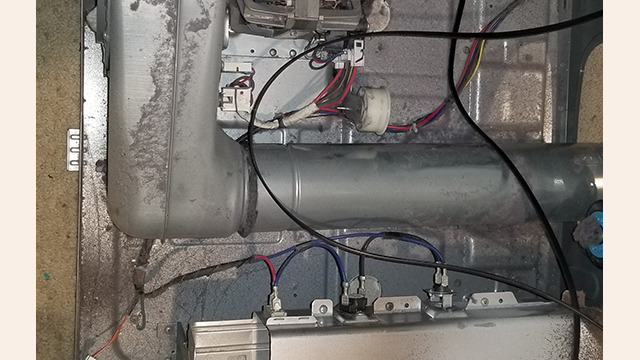

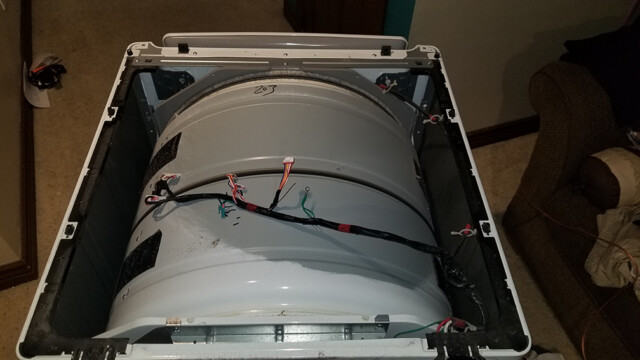

Wiring and components inside the dryer before repair.

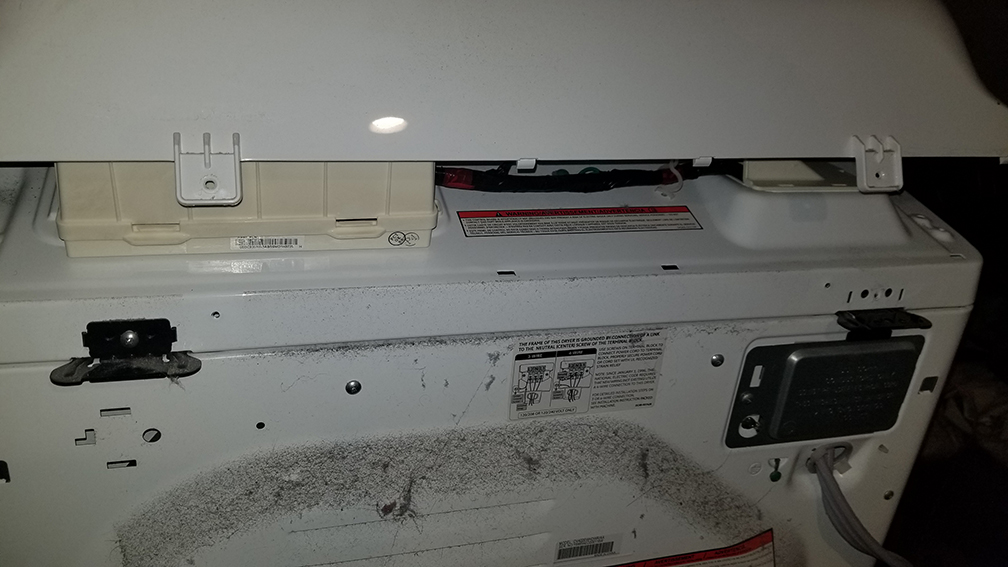

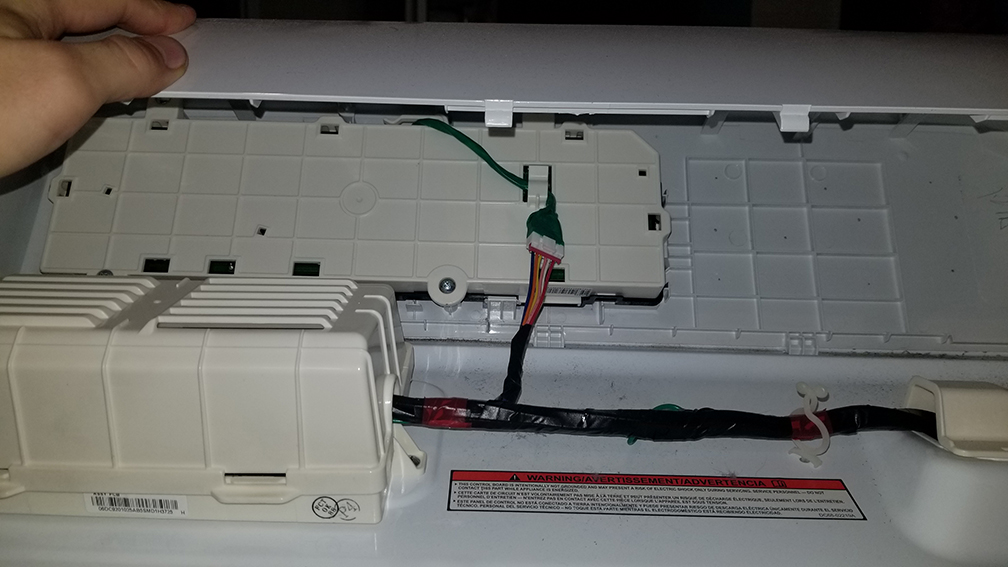

Dryer control panel opened to access internal connections.
Wiring visible behind the dryer control panel.

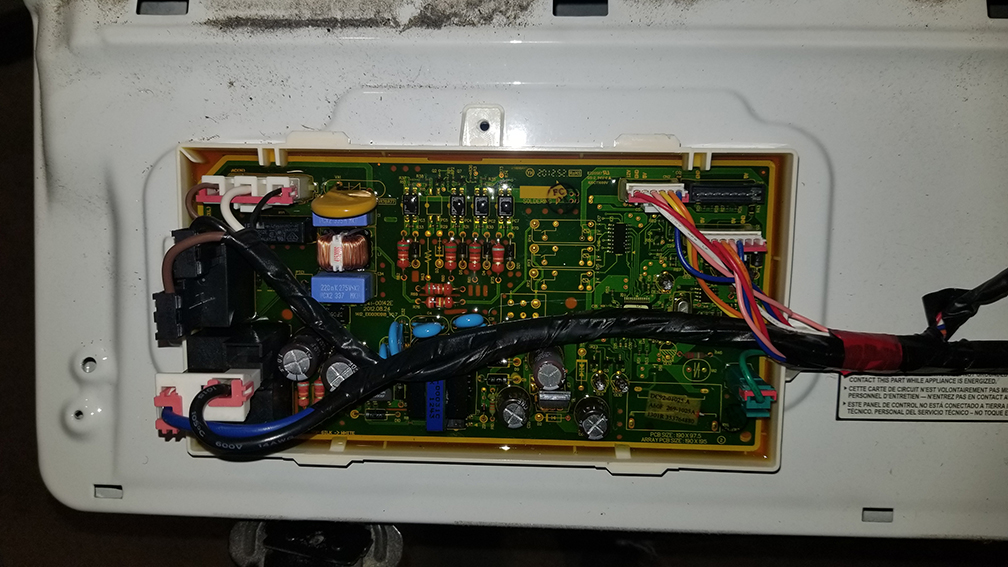

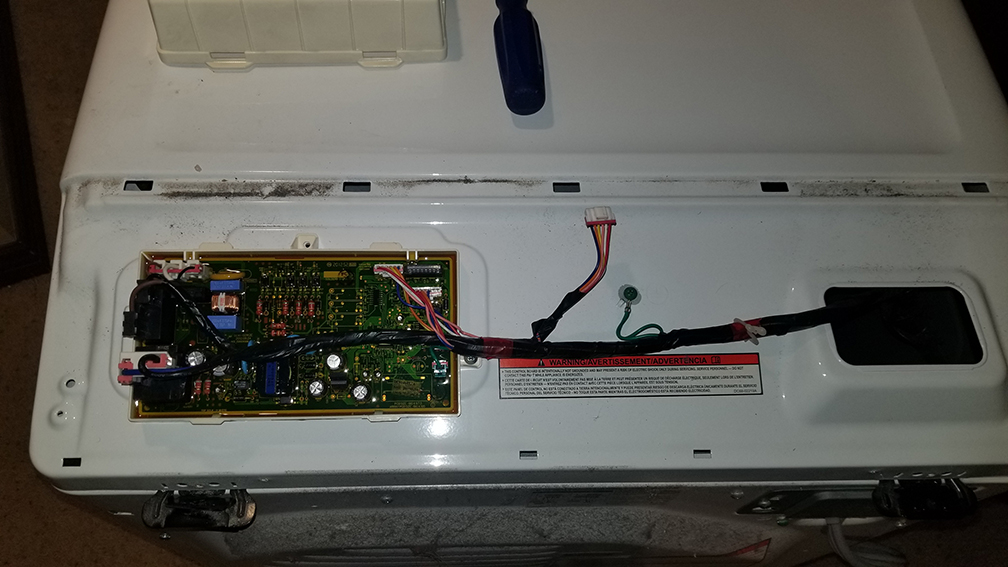

Dryer control board and wiring during repair.
Close view of the dryer circuit board.
Dryer front opened to reach internal components.
Dryer Repair
Dryer door opening during reassembly.

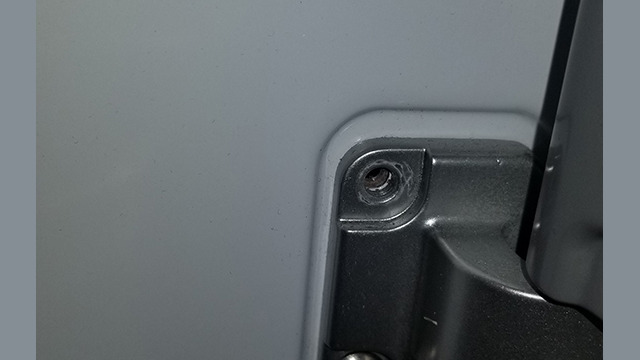

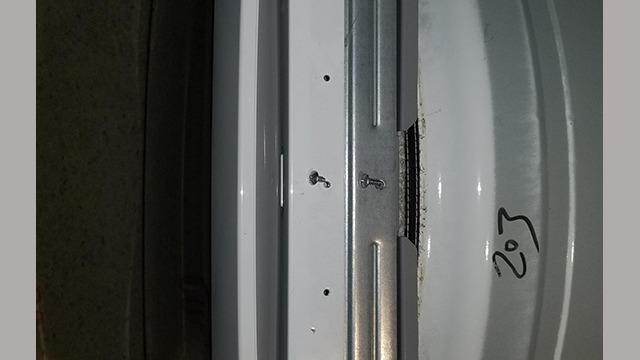

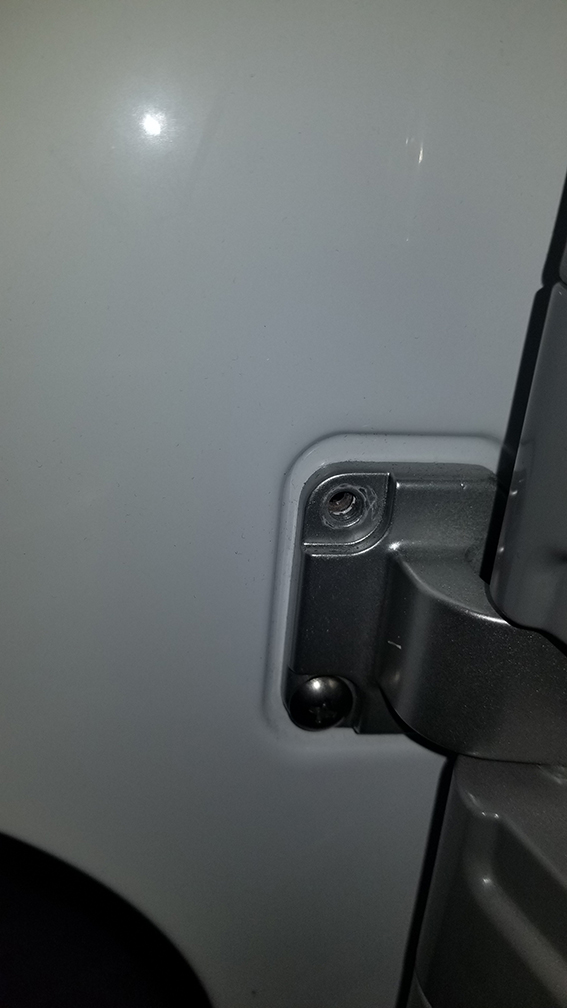

Close view of a dryer fastener during reassembly.

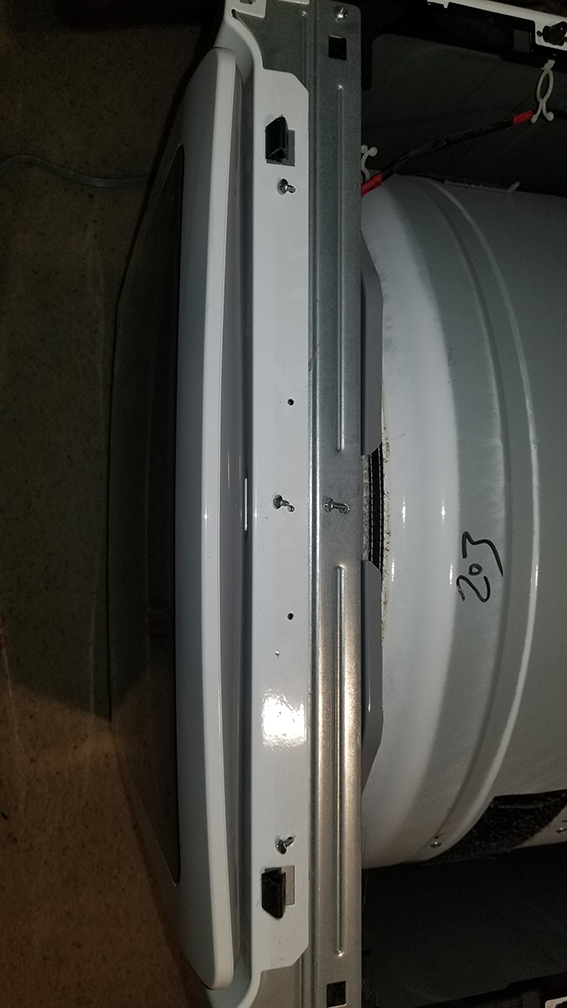

Dryer front and door area after reassembly.

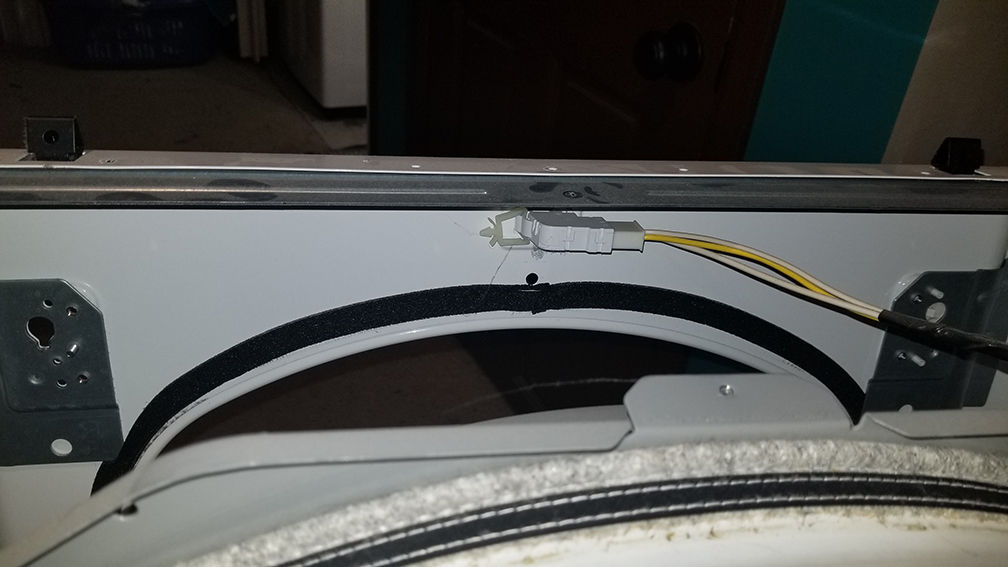

Internal dryer connections after the repair work.
Treadmill Belt Replacement

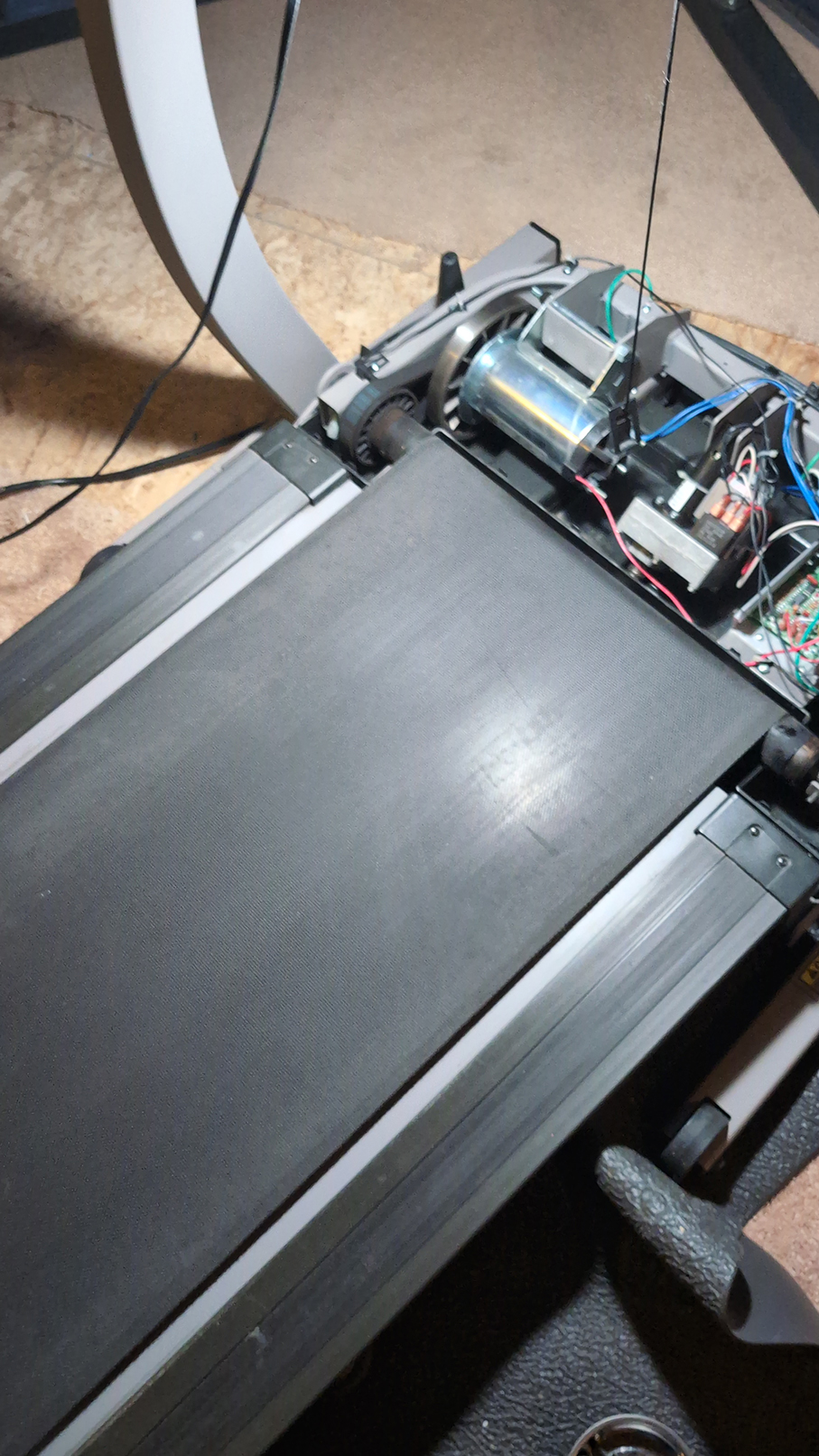

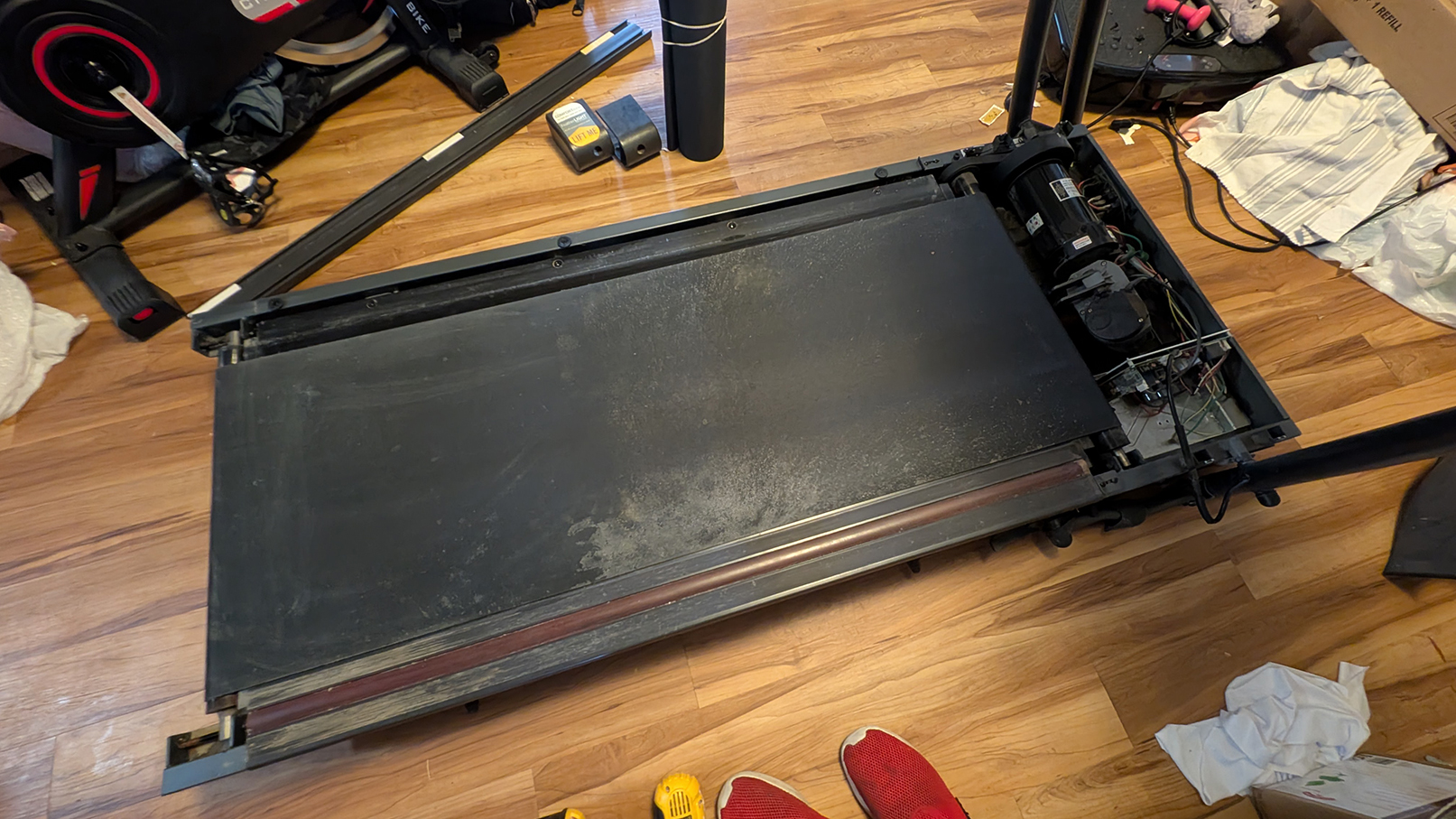

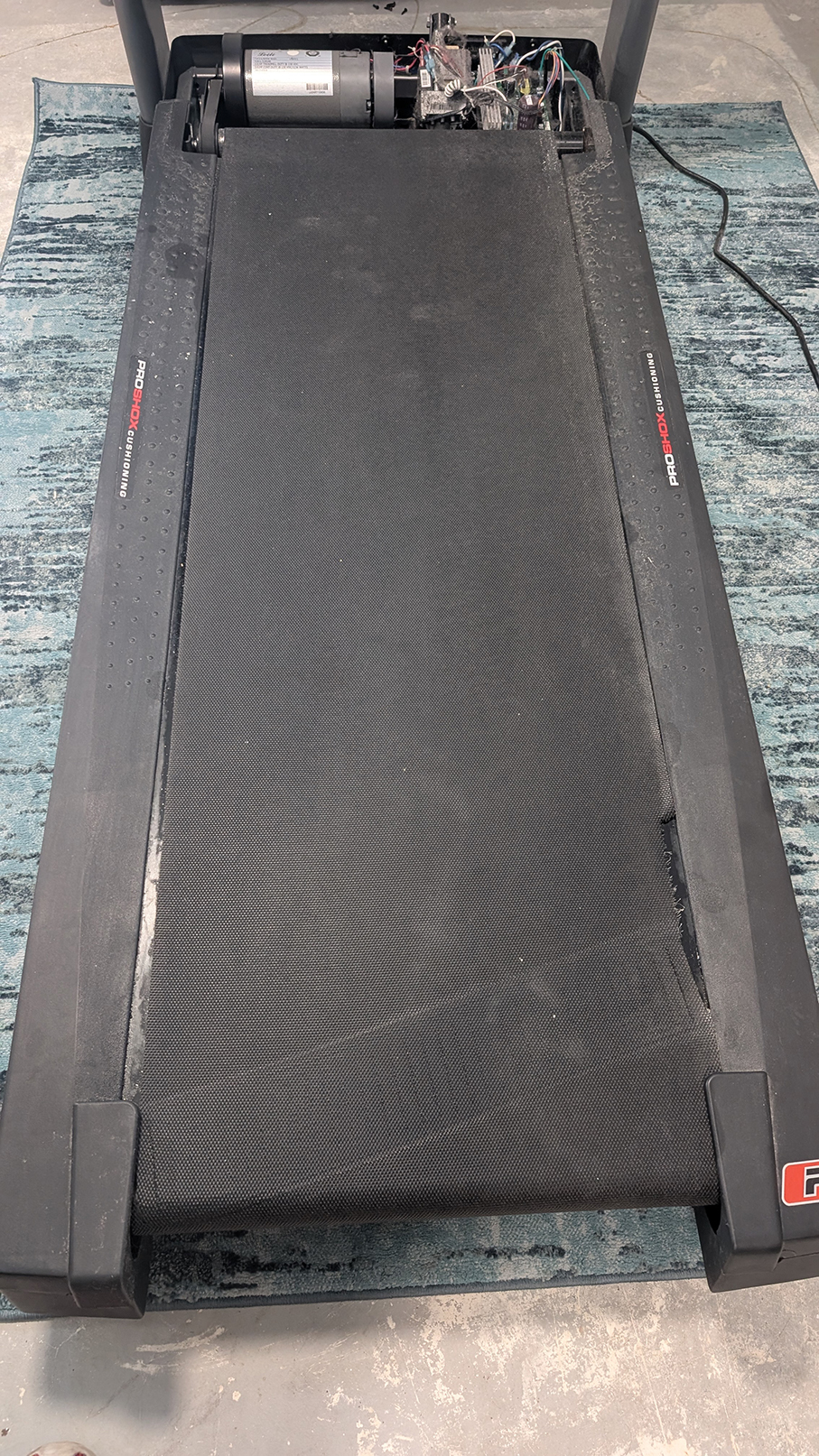

Treadmill deck and front housing opened for repair.

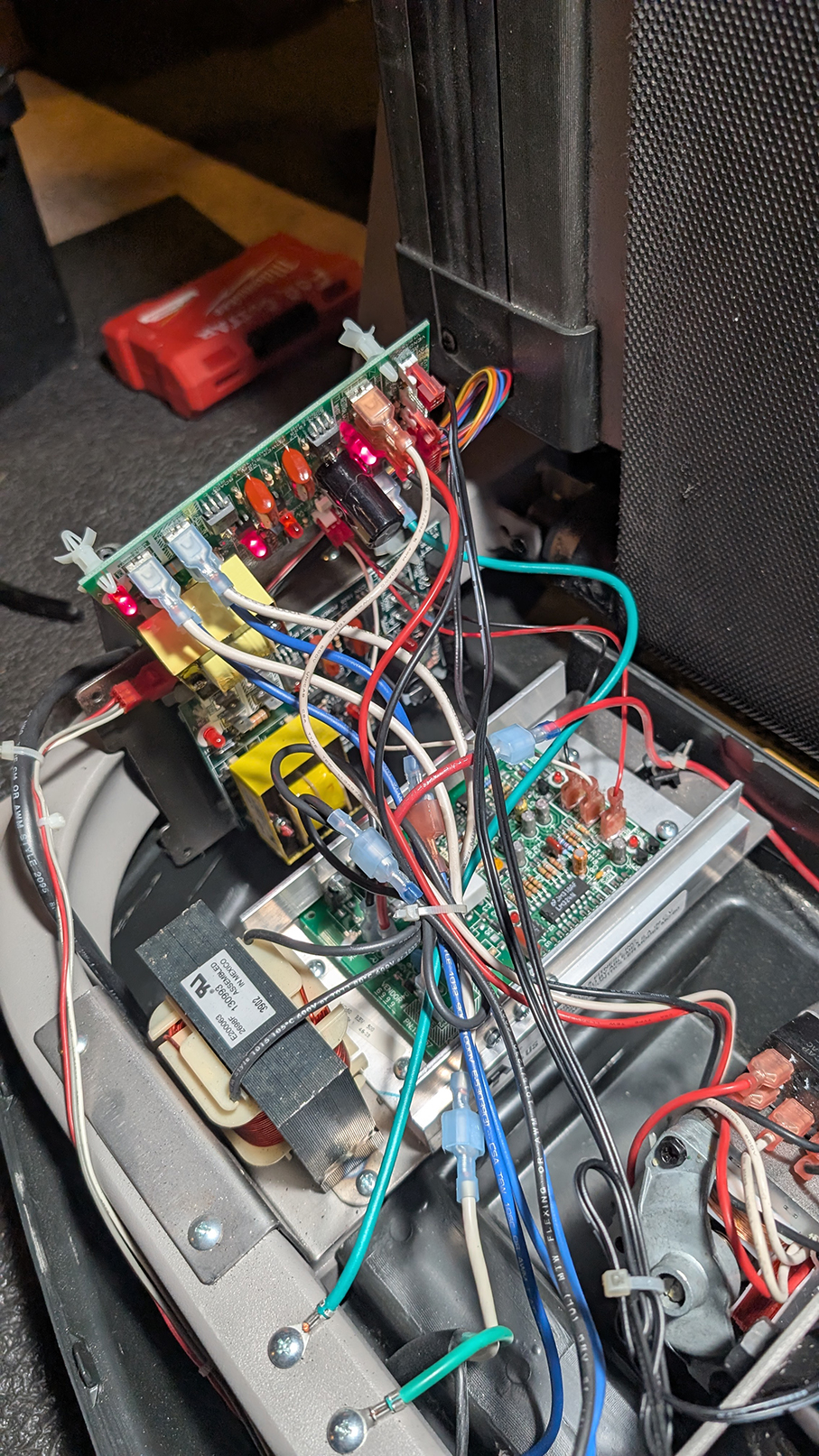

Wiring exposed inside the treadmill housing.

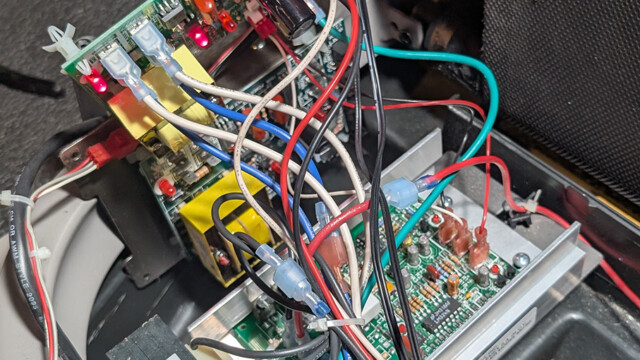

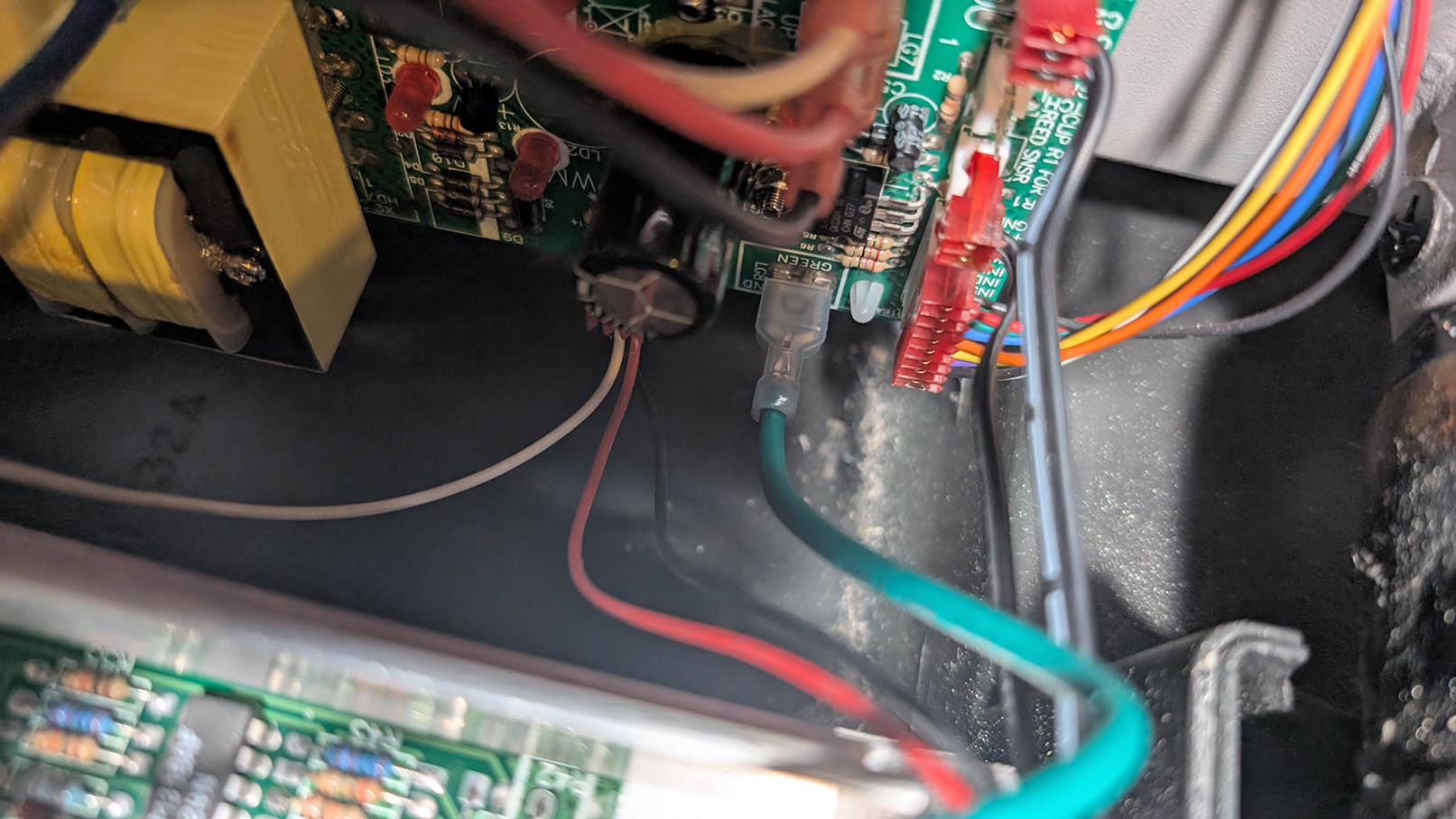

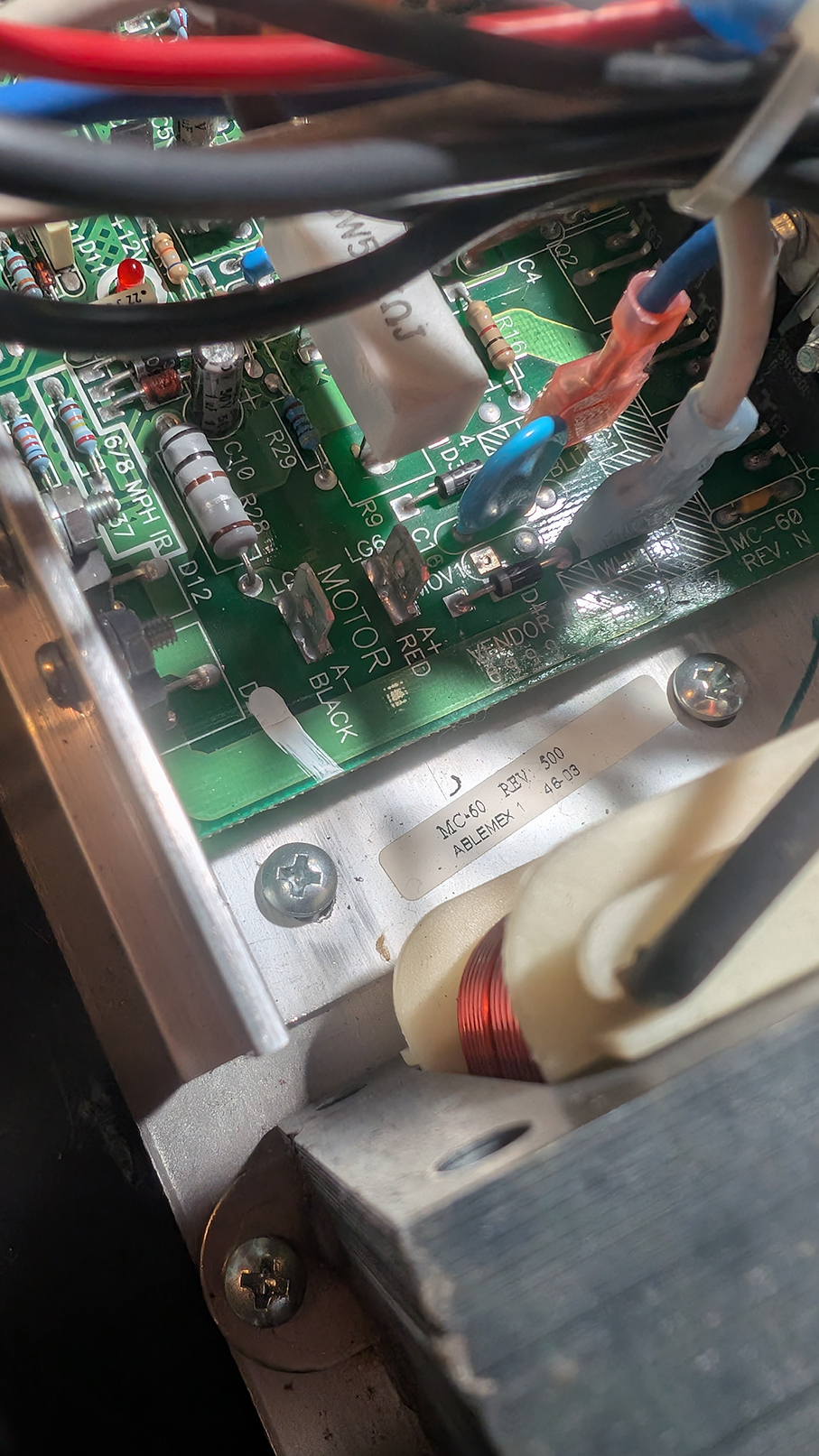

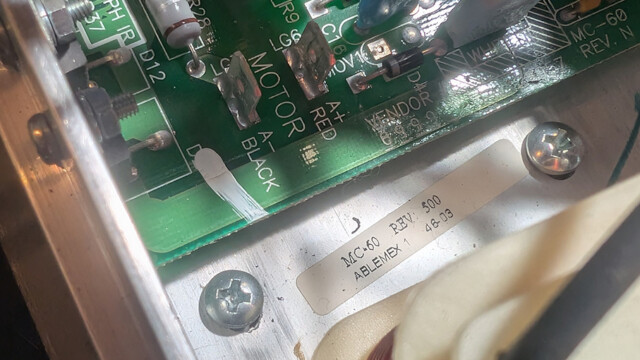

Circuit board visible during the treadmill repair.
Control wiring inside the treadmill housing.

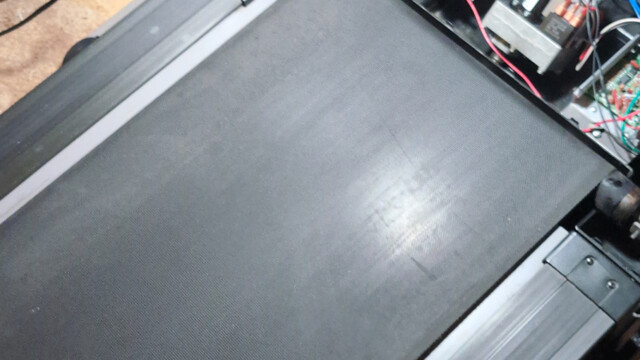

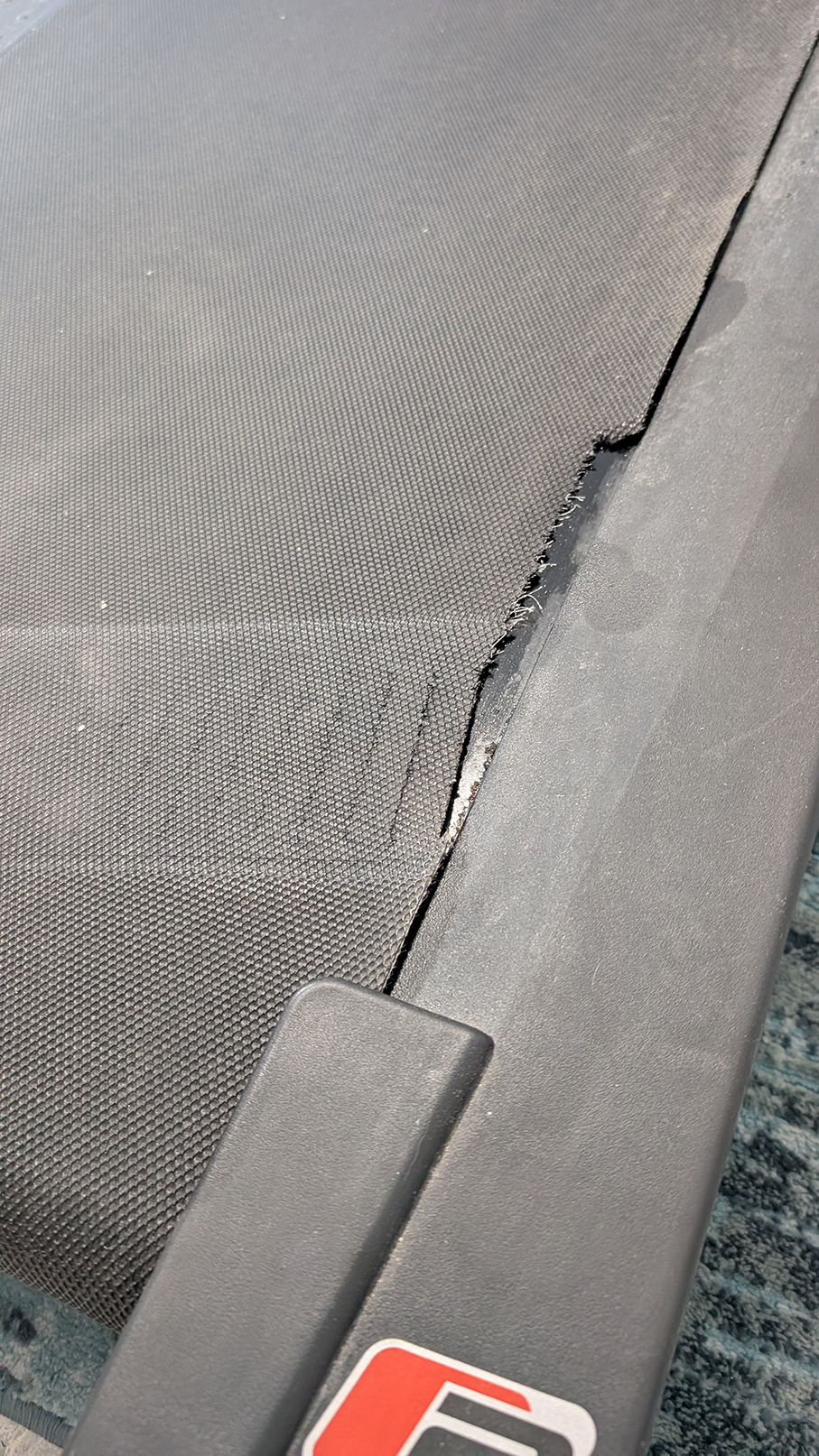

Close view of the treadmill belt before replacement.

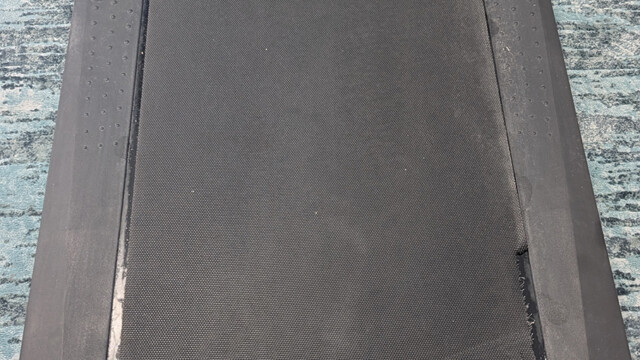

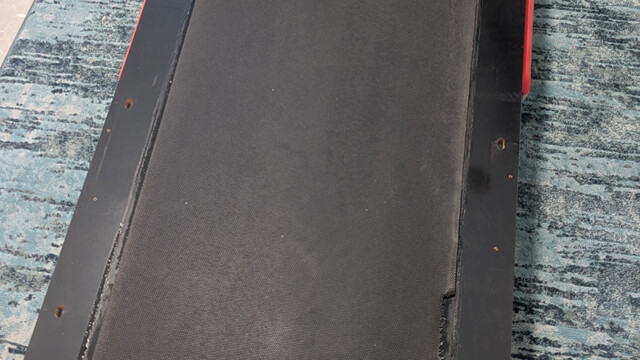

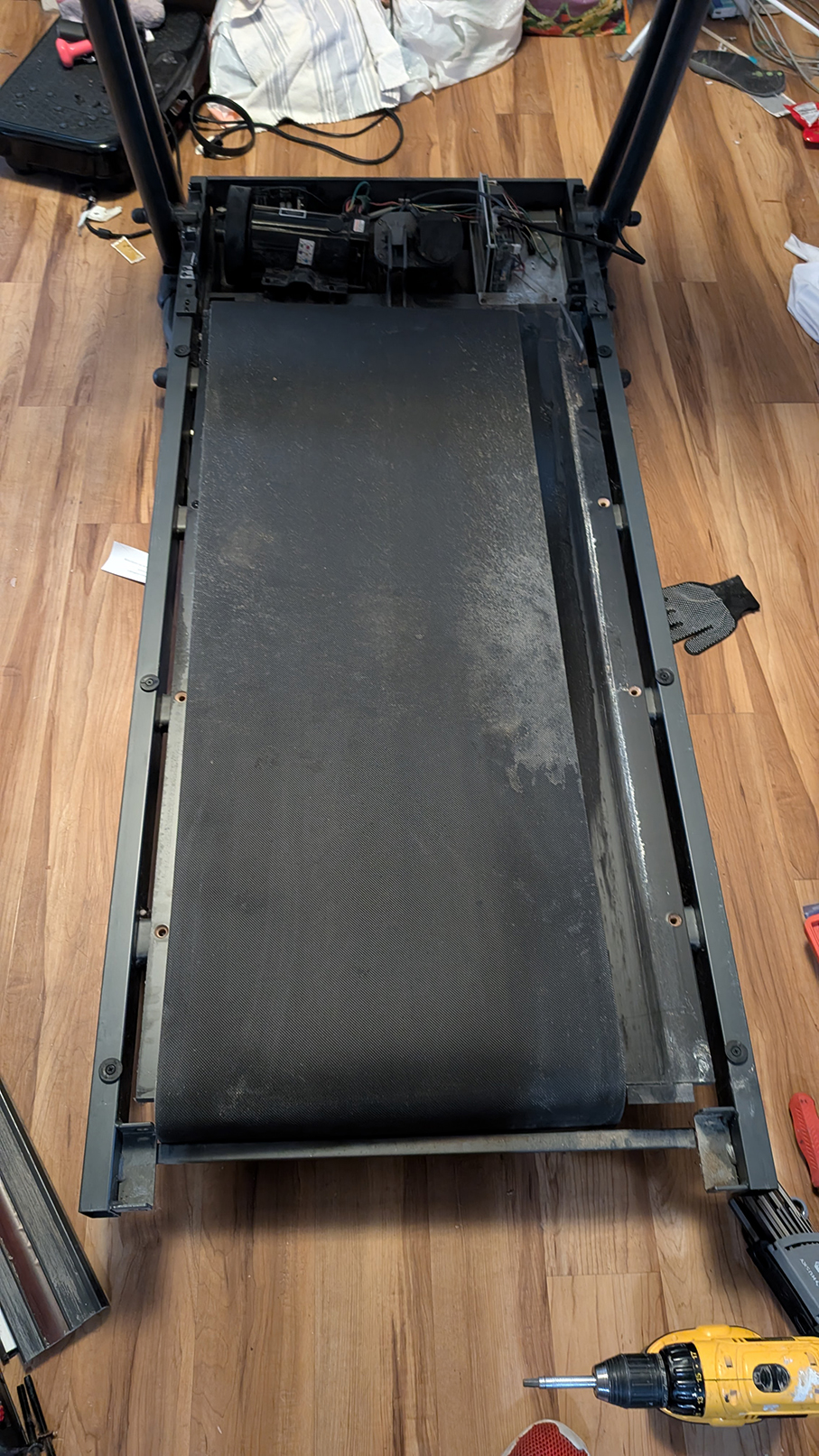

Treadmill belt surface before replacement.

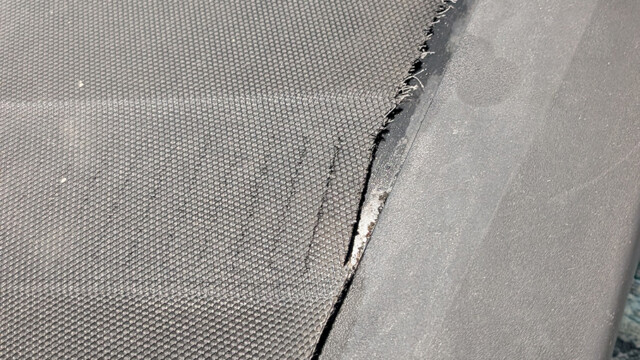

Belt edge and tread surface during inspection.

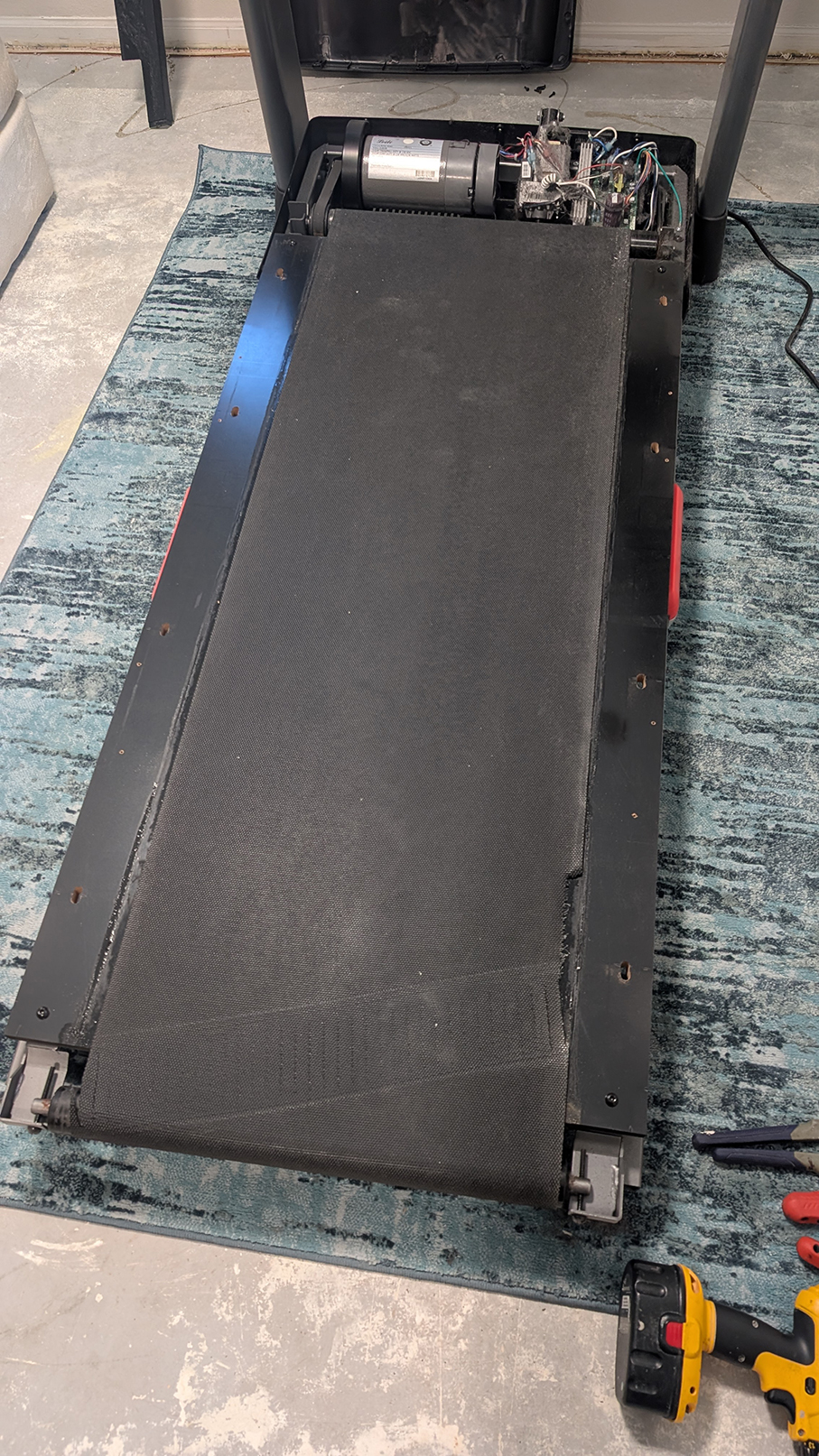

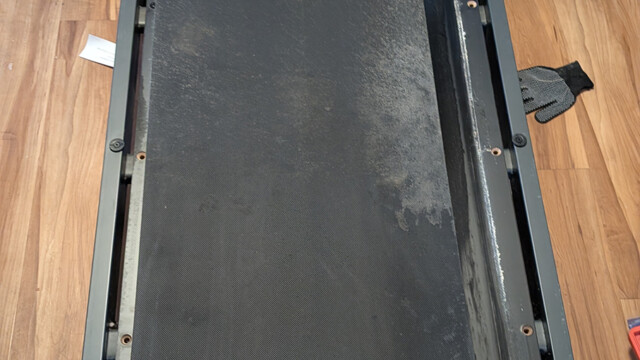

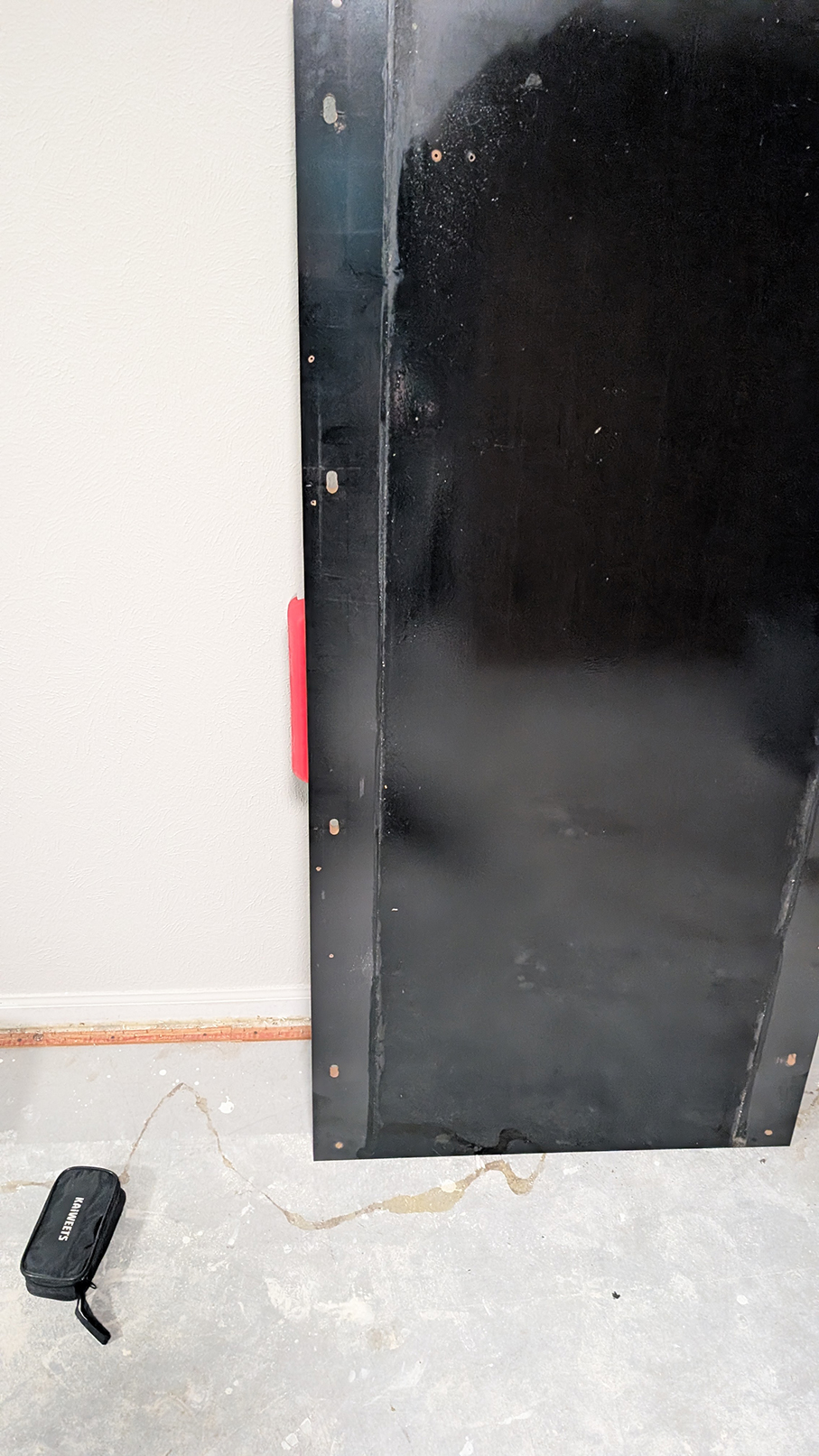

Treadmill deck and belt during replacement.
Treadmill with the belt fitted during the repair.
Belt and frame during adjustment.
Belt positioned along the treadmill deck.
Treadmill belt installed on the deck.

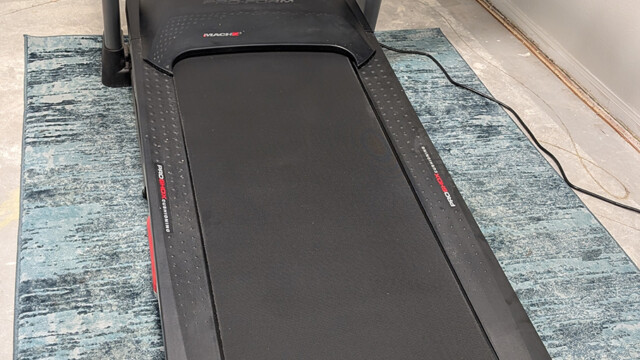

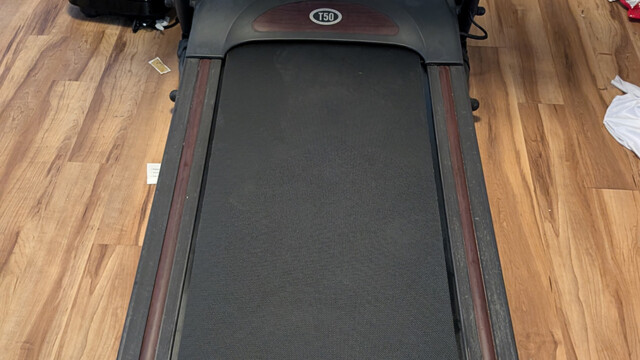

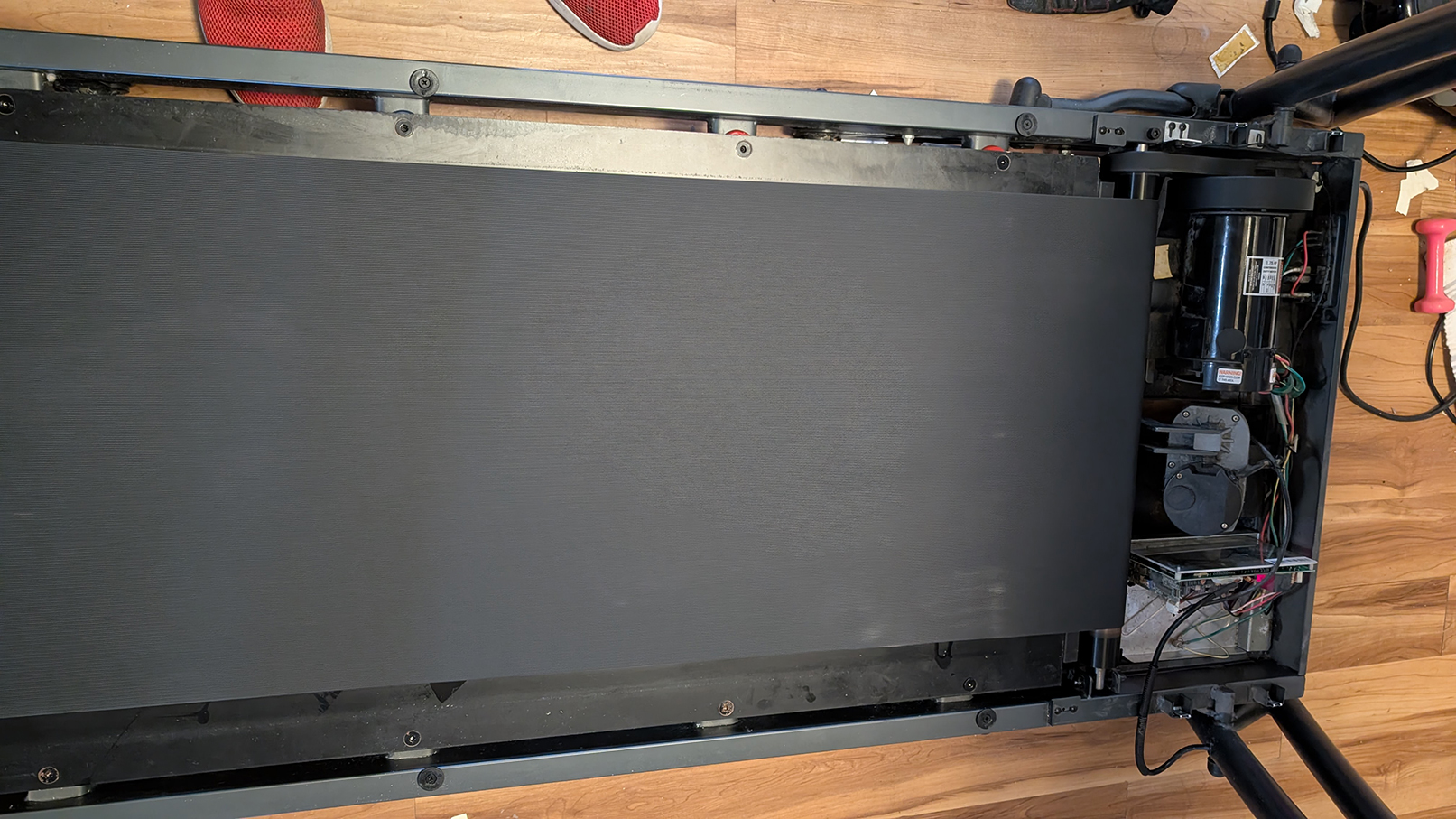

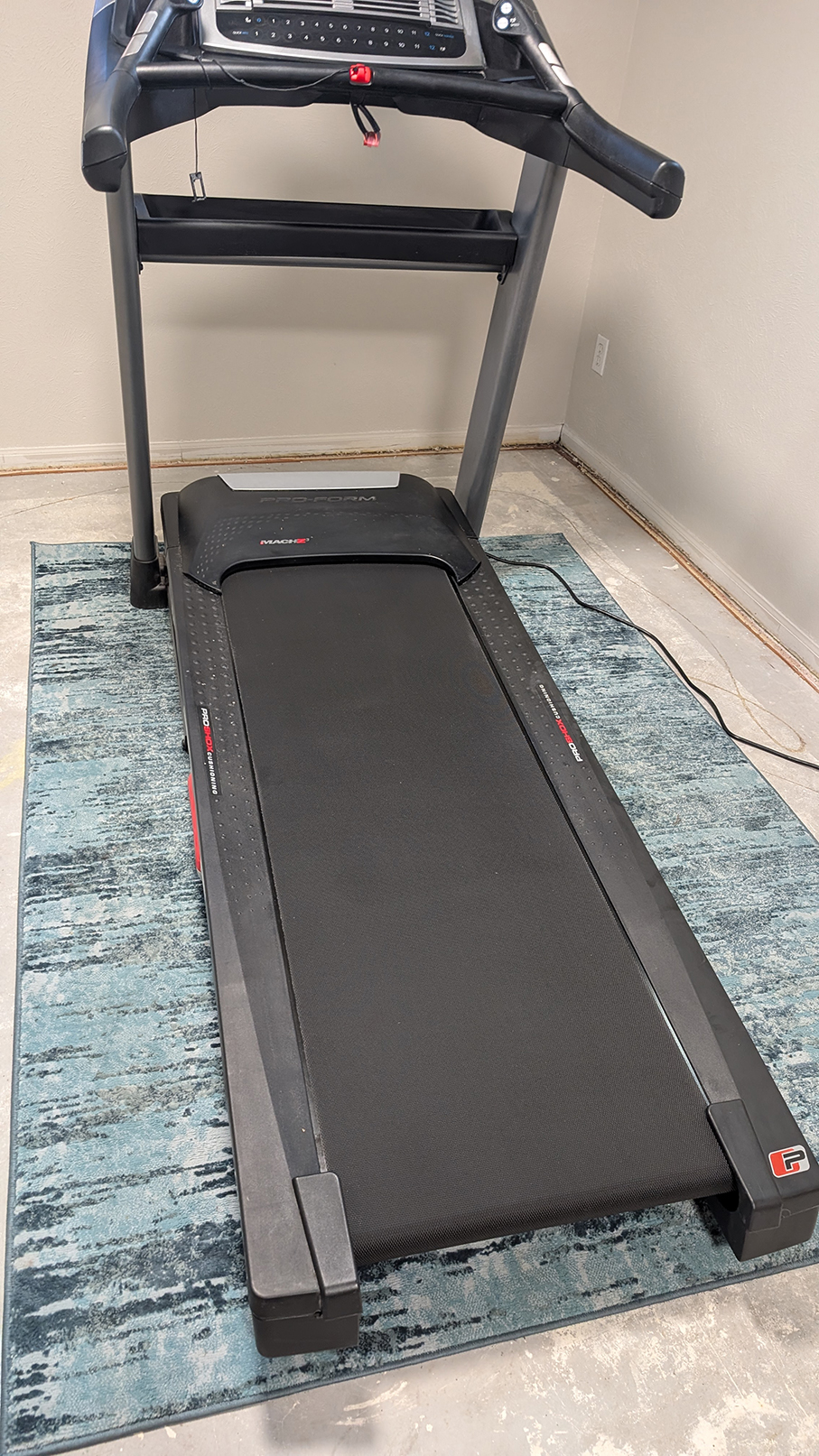

Treadmill with the replacement belt installed.
